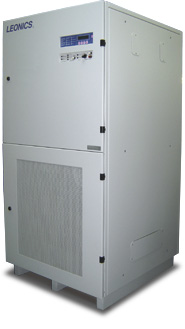

Three-phase Bidirectional Hybrid Inverter APOLLO MTP-610

APOLLO MTP-610 series is a Three Phase Bidirectional Dual Mode Hybrid Inverter for mini-grid system. It can operate with diesel generator, batteries and external DC charge controller (if available). It is suitable for supplement diesel generator in off-grid areas. This hybrid inverter controlled the operation by microprocessor that makes it has high performance and capability to control and check over all system accurately and also supplies quality sine wave power output. It indicates the status of inverter with LED indicator and LCD display. Furthermore, Battery Management and Controller (BMC) is used to support the operating of inverter which manages and control the battery charging and discharging for prevent battery capacity loss and prolong battery life. This bidirectional inverter can operate with Hybrid system Control Comman Unit (HCCU) by supervisory control mode for remote controlling and real-time monitoring the system data and parameters via www.leonics-moc.com It suit to use for rural electrification or remote village electrification.

•	Built-in output transformer
•	High efficiency more than 95%
•	Low harmonic distortion (less than 4%)
•	High reliablity design for remote area
•	Automatic/ Manual generator control
•	Operate with Hybrid System Control Command Unit (HCCU)
•	Capable to use multiple renewable energy source in both DC coupling and AC coupling such as PV panel, wind turbine generator and micro hydro generator
•	Separate DC Bus for multiple sources charging
•	Monitor energy available from the renewable energy (DC) sources and minimize the charging current from the diesel generator
•	Automatic battery equalization (option) to prevent battery capacity loss and to prolong battery life
•	Battery temperature compensation (option)
•	Preset time schedule by System Command Unit (SCU) for automatic controlling the auxiliary power sources such as generators in mini-grid system (option)
•	IP65 protection outdoor enclosure (option)
